Protvino concrete labyrinth benchmark (ALARM-CF-AIR-LAB-001)

A californium-252 neutron source of intensity $5.66 \cdot 10^8$ n/s is located at entrance to a 3-section concrete labyrinth [1]. The goal is computation of spatial distribution of a neutron flux linear functional which is determined via a fluence-to-energy response funtion and relates to the Bonner sphere detector count rates. Those are considered below just two of the most problematic cases among represented in the original work [1]: Case 5A (2 polyethylene plates in the second section) and Case 6B (covered source and dead-end).

In this calculation, the following techniques are used:

  • Expected-value estimators;
  • Simplified adaptive splitting.

The primary computational gain is achieved here thanks to the simplified adaptive splitting technique.

Computed flux functional - pulse rate by the detector response function is taken from the benchmark data for the case of 5 in. Bonner polyethylene sphere diameter.

(a) Case 5A
(a) Case 5A
(b) Case 6B
(b) Case 6B
Figure 1: Neutron horizontal midplane cross-section plots. Clickable.

Thicknesses of volumetric detectors are equal to 10 cm. Results of the two 11.2 hours long concurrently executed computations are presented in Figures 3-5 (see details in [2]).
(a) Case 5A
(a) Case 5A
(b) Case 6B
(b) Case 6B

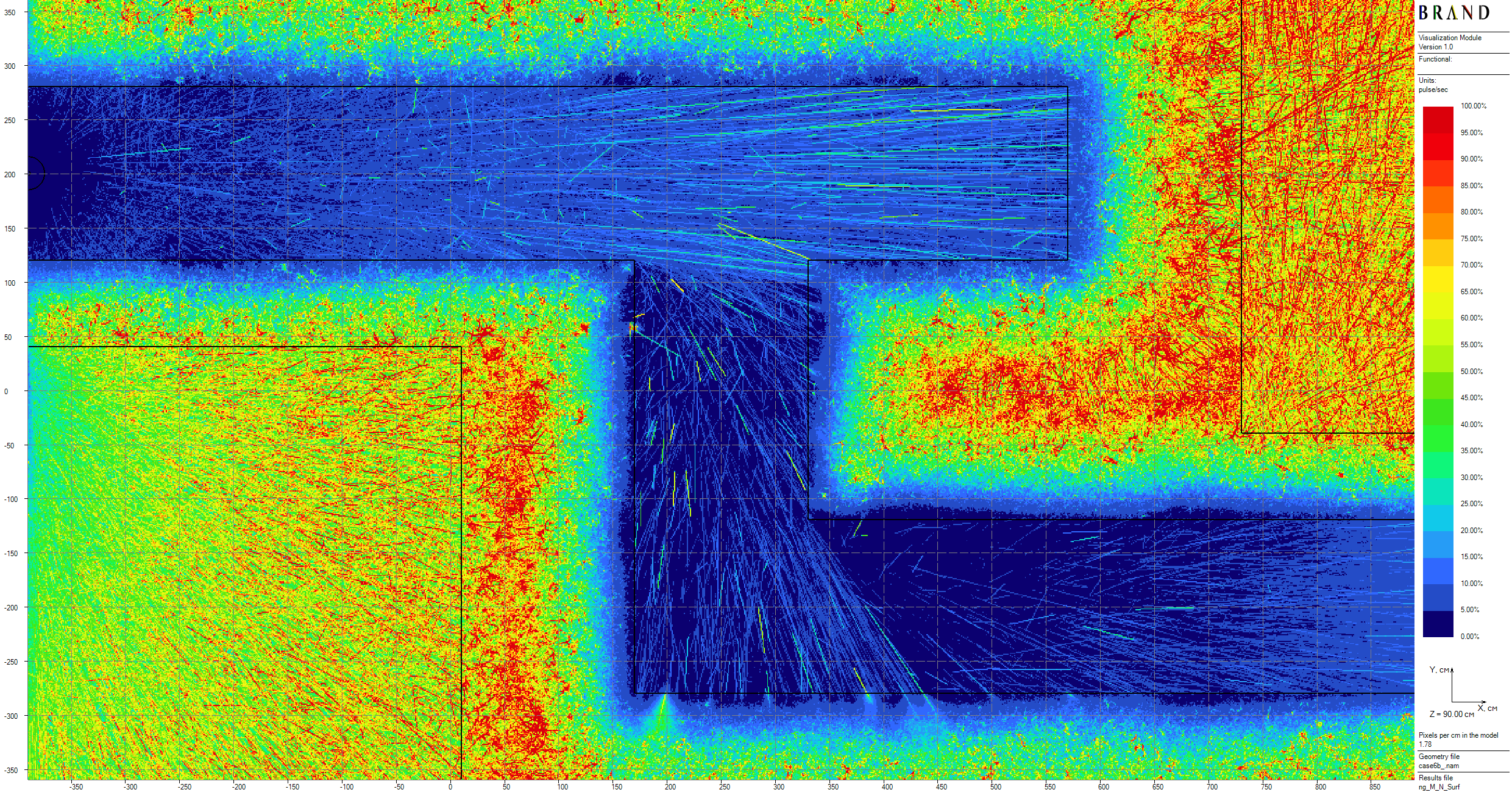

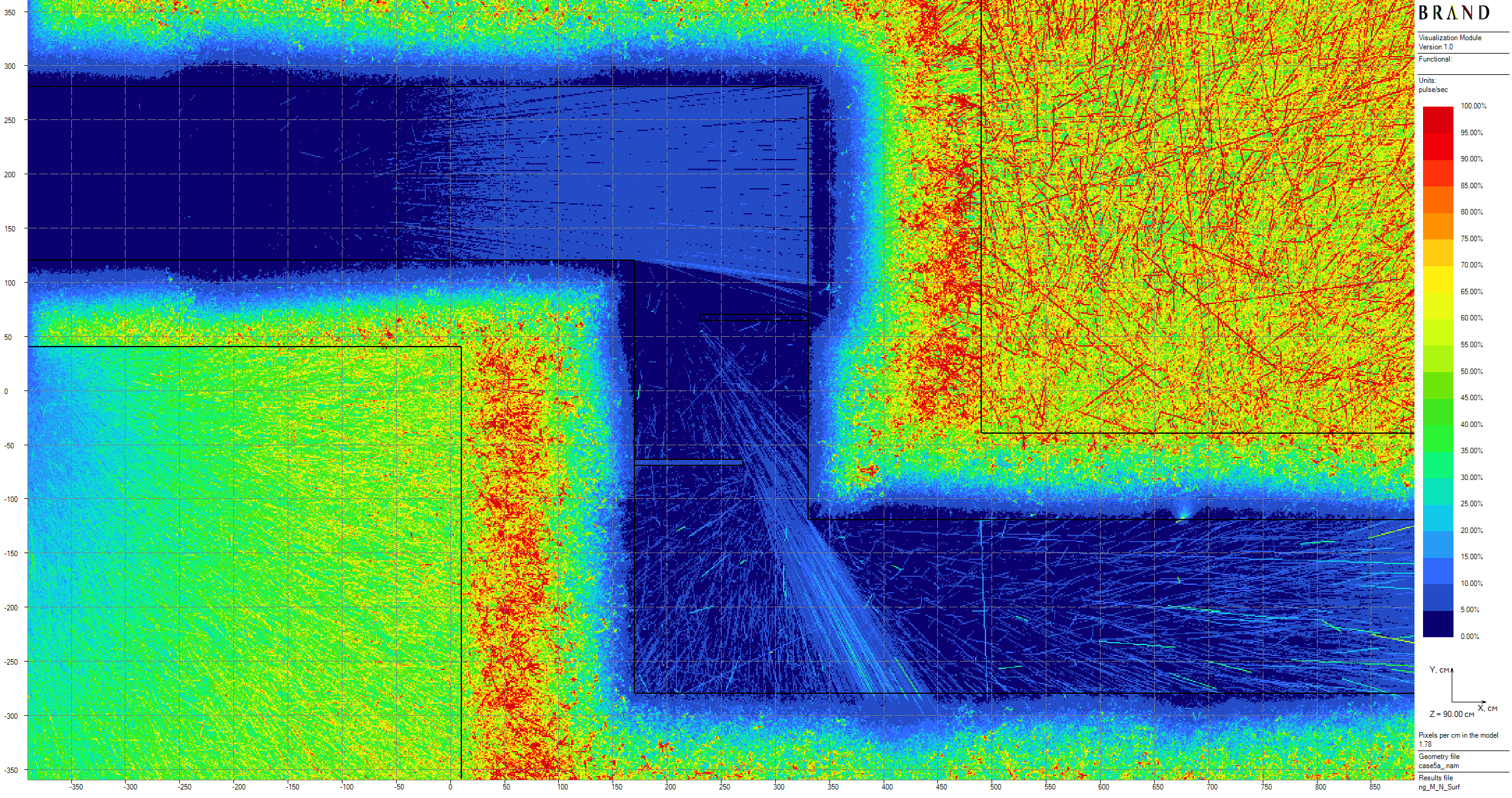

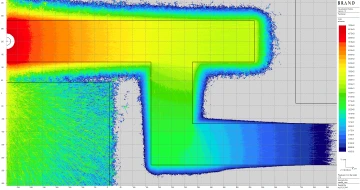

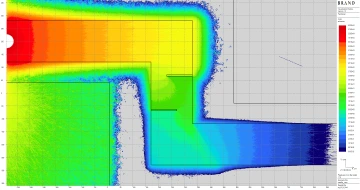

Figure 2: Neutron horizontal midplane count rate (in pulse/sec) and 1σ relative error global plots. Clickable.

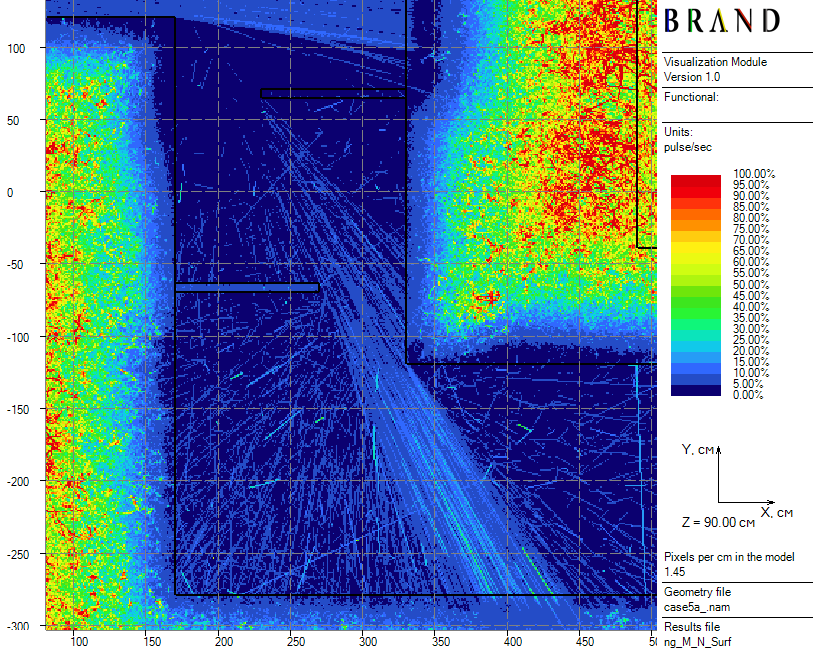

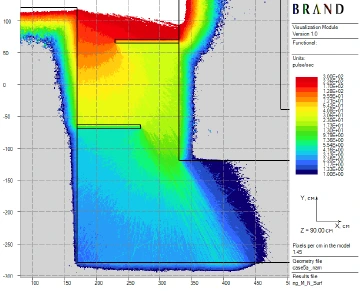

Figure 3: Local plot of count rate spatial distribution for Case 5A, pulse/sec Clickable.

References

  1. Mark Nikolaev, Natalia Prokhorova, Tatiana Ivanova, “Neutron Fields in Three-Section Concrete Labyrinth from Cf-252 Source,” ALARM-CF-AIR-LAB-001, “International Handbook of Evaluated Criticality Safety Benchmark Experiments,” OECD Nuclear Energy Agency, NEA-1486/19, 2021 (DVD).
  2. V.G. Mogulian. An approach to radiation shielding evaluations using estimators by expected scoring. 2025. doi:10.5281/zenodo.16781416.
