Vitaly Mogulian

Monte Carlo Variance Reduction Research & Code Developing & Nuclear Engineering

CASTOR-V/21 multicase computations

For the given model of the isolated CASTOR-V/21 cask, those are considered additional 5 cases for each type of radiation defined using the cask side wall shield cutting by cylindrical surfaces. These 6 cases in total have been completed in a single computation of total running time 12.1 hours using the multi-thickness Monte Carlo technique [2].

In this calculation, the following techniques are used:

Expected value estimators;
Multi-thickness calculations;
Joint location-direction importance sampling from source (for primary gamma only);
Energy importance sampling from source (for primary gamma only);
Exponential transform;
Simplified adaptive splitting.

The primary computational gain is achieved here thanks to the simplified adaptive splitting, exponential transform (for both gamma), and multi-thickness calculation techniques.

Computed flux functional - ambient equivalent dose H*(10) [1] rates.

Below, the obtained results of neutron-gamma and gamma problems calculations are presented (see details in [2]).

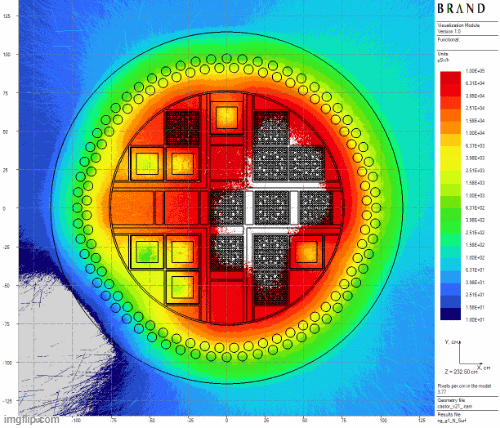

Figure 1: Neutron axial dose rate distribution for the single cask

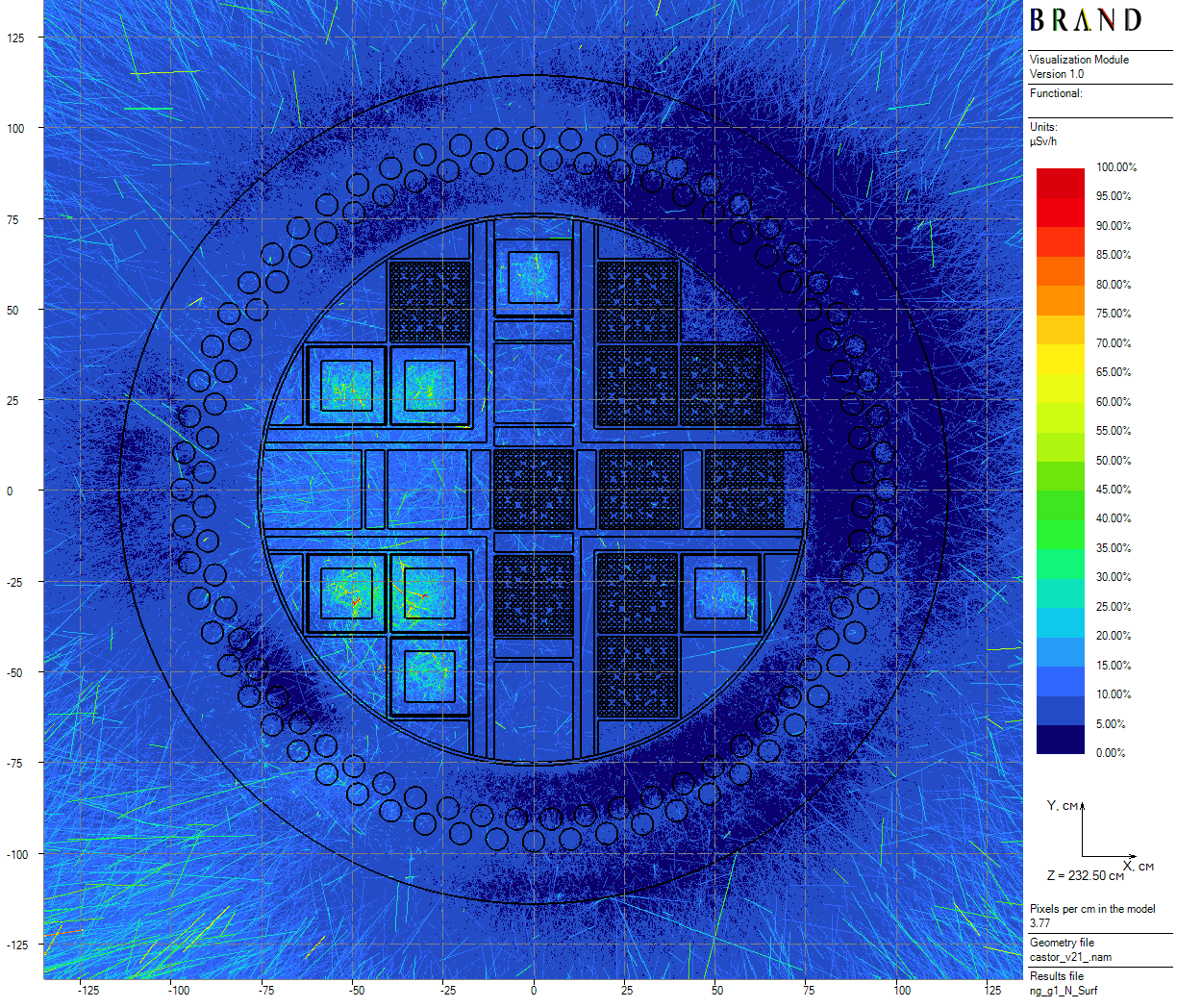

Figure 2: Neutron axial relative error distribution for the single cask

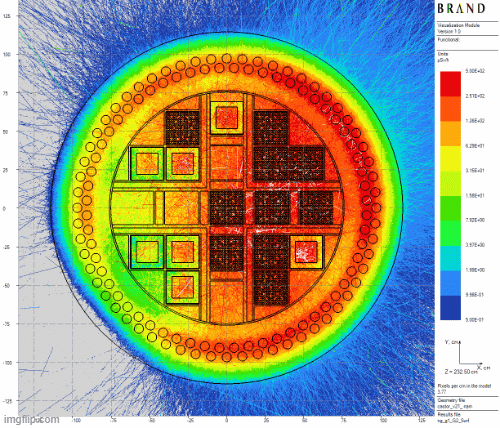

Figure 3: Secondary gamma axial dose rate distribution for the single cask

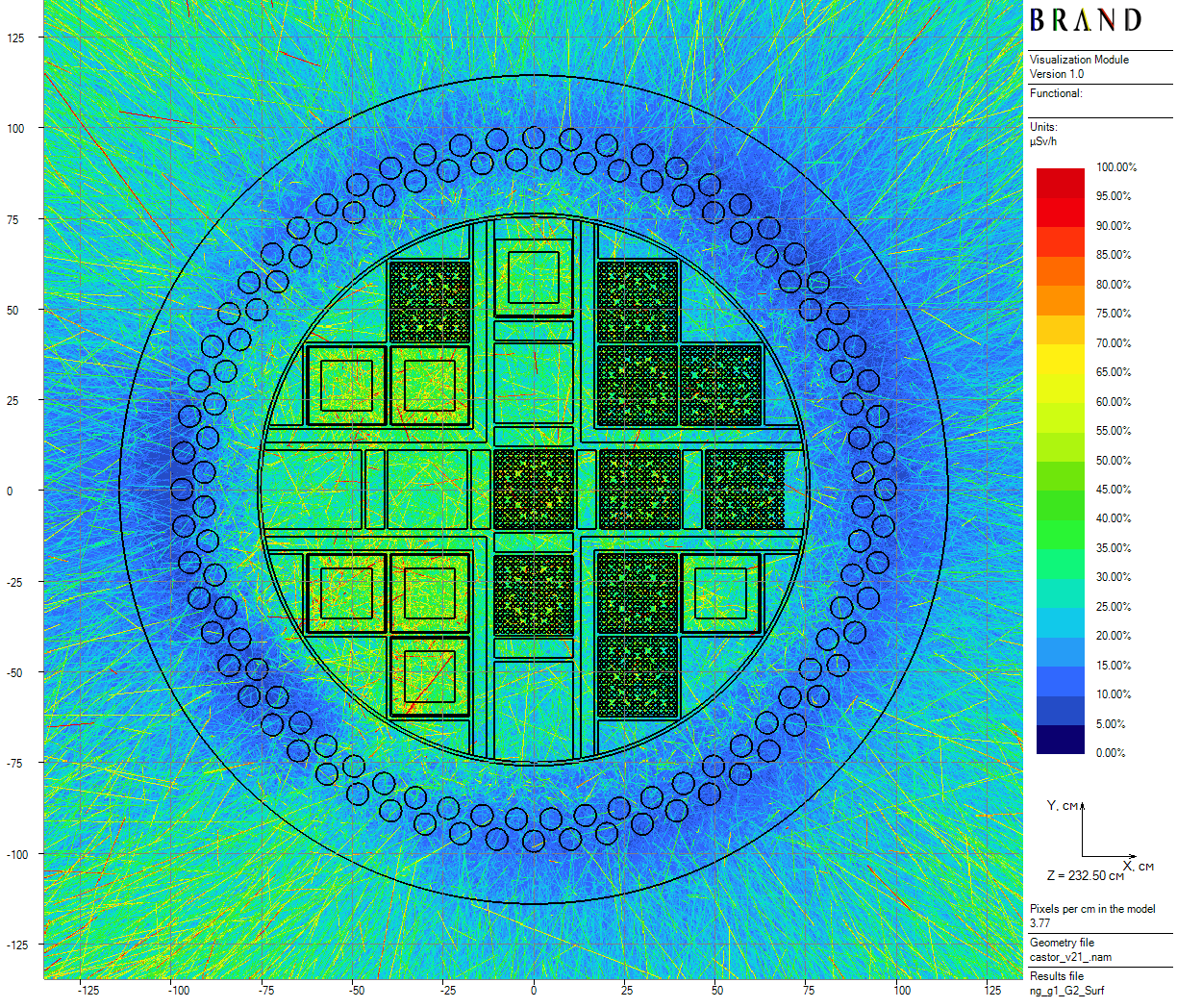

Figure 4: Secondary gamma axial relative error distribution for the single cask

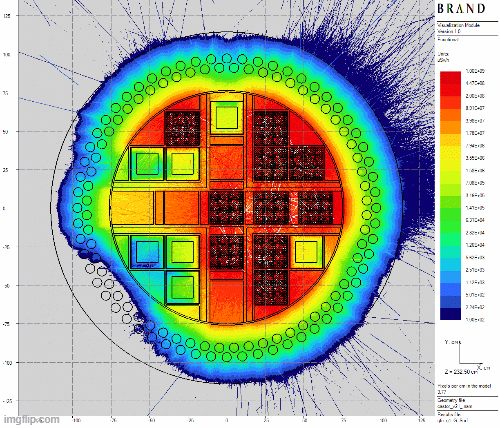

Figure 5: Primary gamma axial dose rate distribution for the single cask

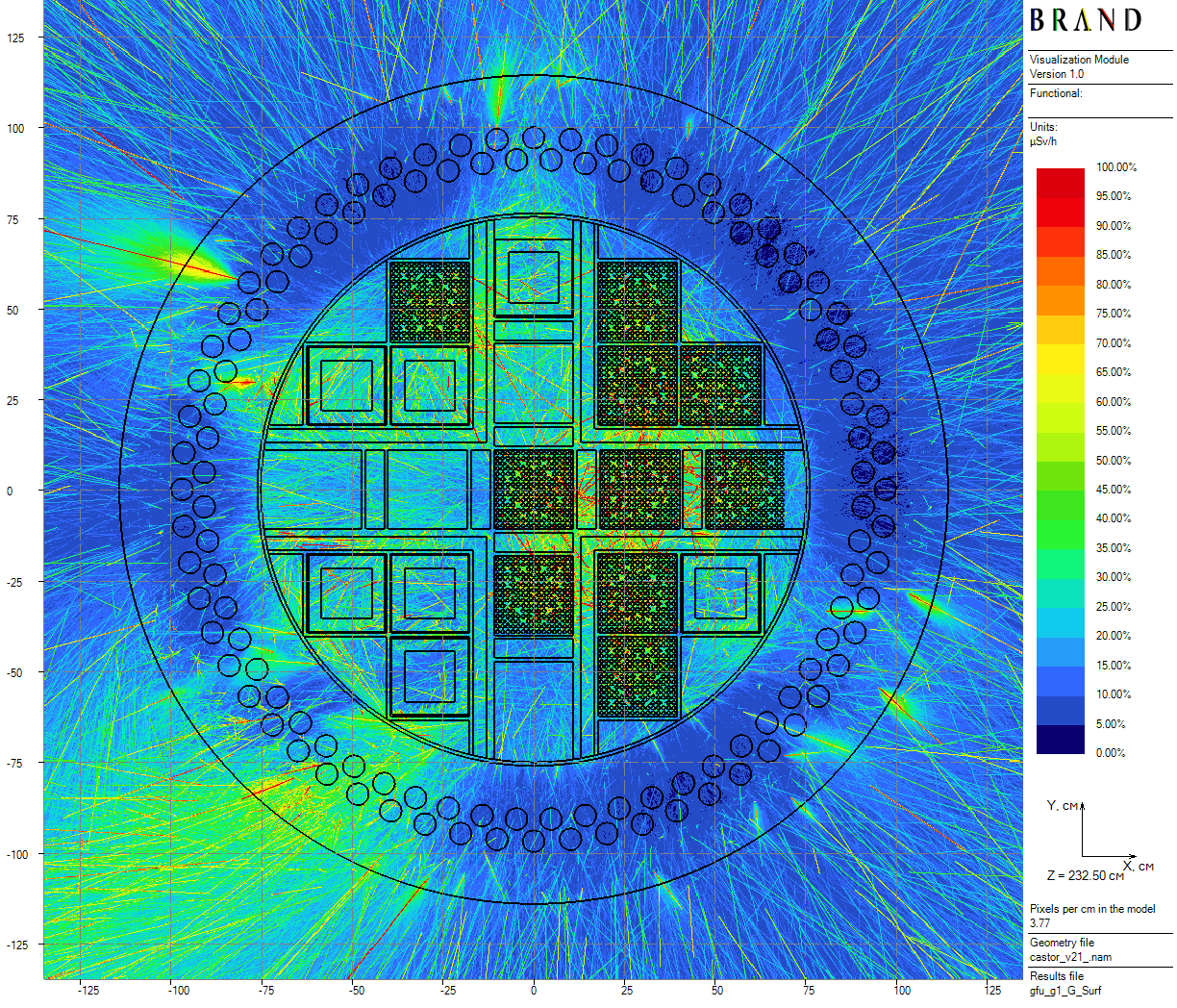

Figure 6: Primary gamma axial relative error distribution for the single cask

Prev ….. Next

References

International Commission on Radiological Protection., International Commission on Radiation Units, and Measurements. Conversion coefficients for use in radiological protection against external radiation. Annals of the ICRP ; v. 26, no. 3/4. Published for the Commission by Pergamon Press, Oxford ;, 1st ed. edition, 1996 - 1997.
V.G. Mogulian. An approach to radiation shielding evaluations using estimators by expected scoring. 2025. doi:10.5281/zenodo.16781416.
